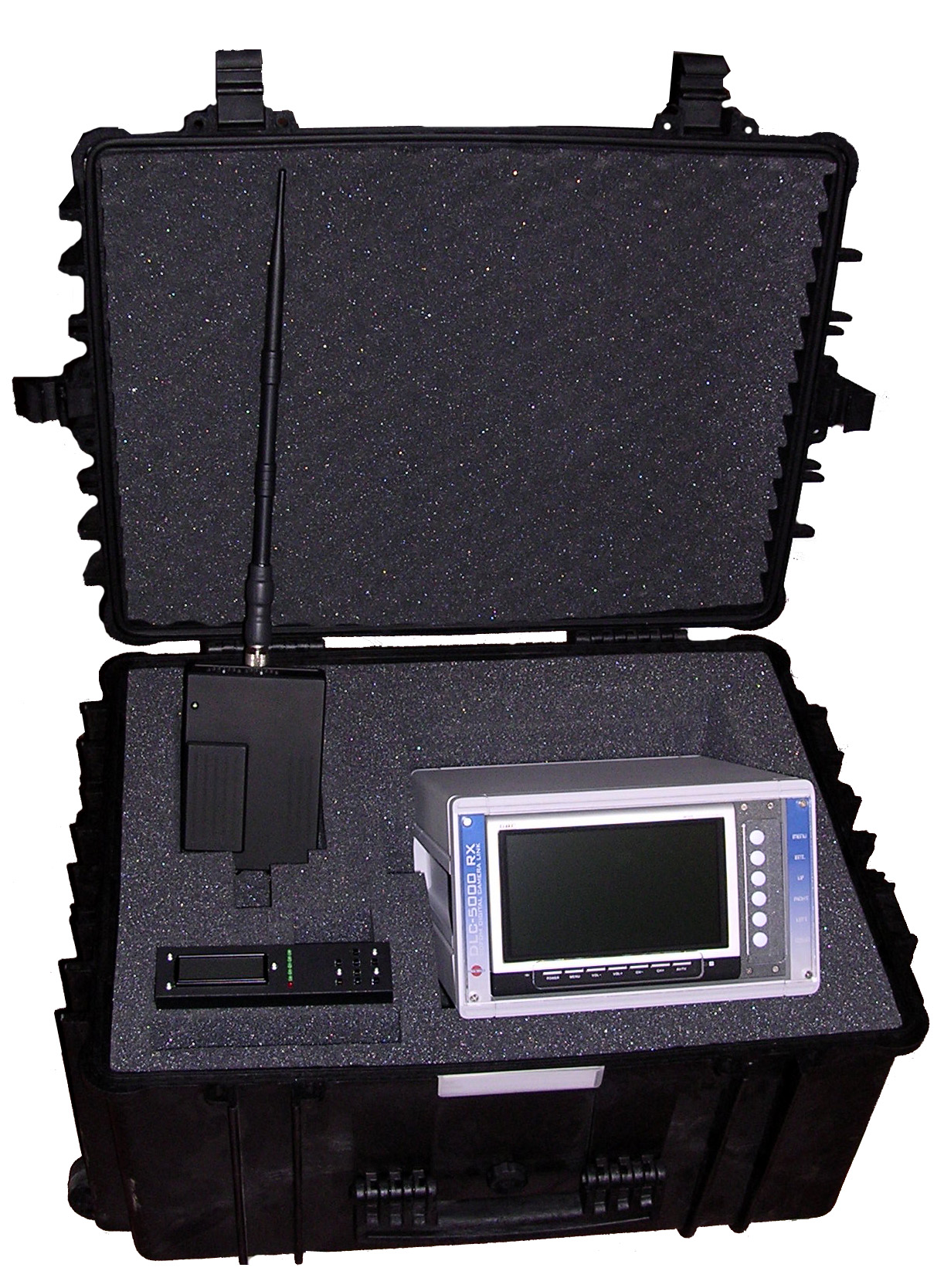

COFDM DIGITAL CAMERA LINK DLC-5000:
- Up to four MPEG-2 Encoder 4:2:0 boards
- Bit rate 1.5 to 15 Mbps each
- Analogue or SDI Video input/output
- Analogue Stereo or SPDIF audio input/output
- Teletext extracting and reinserting
in TS
- Multiplexer 4 inputs - local or external
- ASI inputs SP or MP
- QPSK Modulator IF 70 MHz
- User configurable encoders through RS-232 port
- Multi language user friendly front panel with LCD |
| |
|
| Back to Top |
|
| |
|
OTHER PRODUCTS
|
 |
|
|
MPEG-2 ENCODERS WITH QPSK MODULATOR MPE-4000:
- Up to four MPEG-2 Encoder 4:2:0 boards
- Bit rate 1.5 to 15 Mbps each
- Analogue or SDI Video input
- Analogue Stereo or SPDIF audio input
- Teletext extracting and reinserting
in TS
- Multiplexer 4 inputs - local or external
- ASI inputs SP or MP
- QPSK Modulator IF 70 MHz
- User configurable encoders through RS-232 port
- Multi language user friendly front panel with LCD |
| |
|
| Back to Top |
|
| |
|
|
|
|
|
MPEG-2 ENCODERS WITH QPSK MODULATOR MPE-4000:
- Up to four MPEG-2 Encoder 4:2:0 boards
- Bit rate 1.5 to 15 Mbps each
- Analogue or SDI Video input
- Analogue Stereo or SPDIF audio input
- Teletext extracting and reinserting
in TS
- Multiplexer 4 inputs - local or external
- ASI inputs SP or MP
- QPSK Modulator IF 70 MHz
- User configurable encoders through RS-232 port
- Multi language user friendly front panel with LCD |
| |
|
| Back to Top |
|
| |
|
|
|
|
|
MPEG-2 ENCODERS WITH QPSK MODULATOR MPE-4000:
- Up to four MPEG-2 Encoder 4:2:0 boards
- Bit rate 1.5 to 15 Mbps each
- Analogue or SDI Video input
- Analogue Stereo or SPDIF audio input
- Teletext extracting and reinserting
in TS
- Multiplexer 4 inputs - local or external
- ASI inputs SP or MP
- QPSK Modulator IF 70 MHz
- User configurable encoders through RS-232 port
- Multi language user friendly front panel with LCD |
| |
|
| Back to Top |
|
| |
|
|
|
|
|
MPEG-2 ENCODERS WITH
16 QAM MODULATOR MPE-4000:
- Up to four MPEG-2 Encoder 4:2:0 boards
- Bit rate 1.5 to 15 Mbps each
- Analogue or SDI Video input
- Analogue Stereo or SPDIF audio input
- Teletext extracting and reinserting
in TS
- Multiplexer 4 inputs - local or external
- ASI inputs SP or MP
- QPSK Modulator IF 70 MHz
- User configurable encoders through RS-232 port
- Multi language user friendly front panel with LCD |
| |
|
| Back to Top |
|
| |
|
|
|
|
|
MPEG-2 ENCODERS WITH COFDM MODULATOR
CFM-2000:
- High performance DVB-T modulator
- DVB-ASI or DVB-SPI TS inputs
- Automatic TS adaptation and PCR restamping
- Input TS bit rate up to 31,67 Mbps
- 1/4 to 1/32 selectable guard intervals
- 1/2 to 7/8 selectable code rates
- 2K / 8K IFFT
- QPSK, 16QAM or 64QAM modulation schemes
- 6, 7 and 8 MHz operation
- Optional SFN operation, hierarchical modes
- Multi language user friendly front panel with LCD |
| |
|
| Back to Top |
|
| |
|
|
|
|
|
MPEG-2 ENCODER ENC-1000:
- Encoder 4:2:0 board
- Bit rate 1.5 to 15 Mbps
- Analogue or SDI Video input
- Analogue Stereo or SPDIF audio input
- ASI output
- User configurable through RS-232 port
- Multi language user friendly front panel with LCD |
| |
|
| Back to Top |
|
| |
|
|
|
|
|
UHF TV TRANSMITTER 1-50 W DIGITAL:
- High performance DVB-T modulator
- DVB-ASI or DVB-SPI TS inputs
- Analogue, Digital or Dual-Mode operation
- Synthesised frequency
- Multi language user friendly front panel with LCD |
| |
|
| Back to Top |
|
| |
|
|
